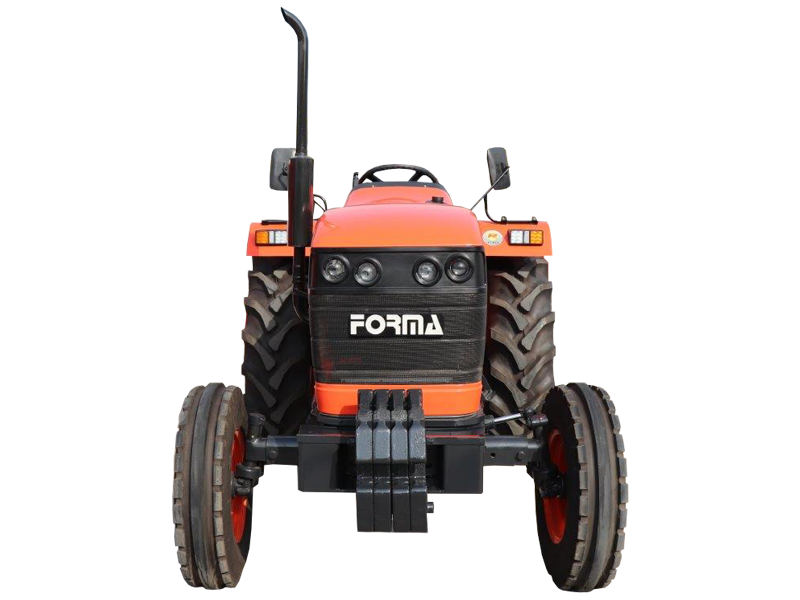

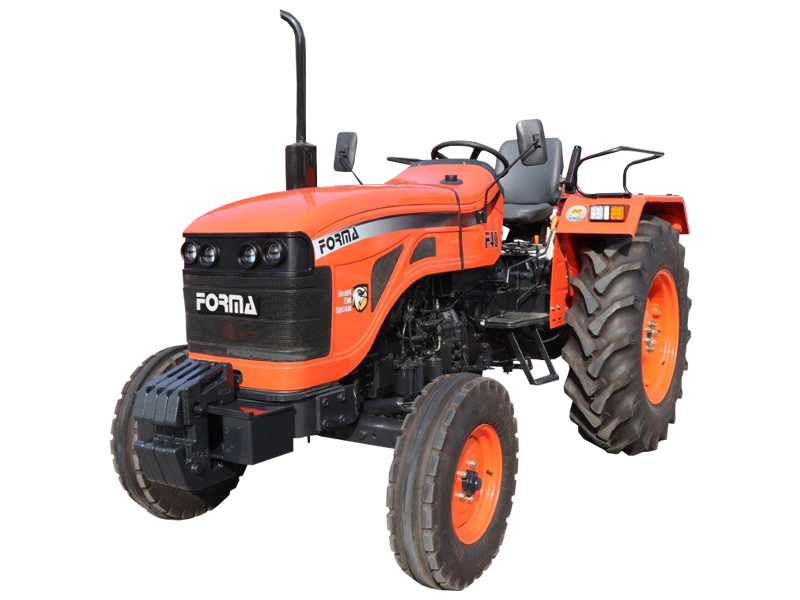

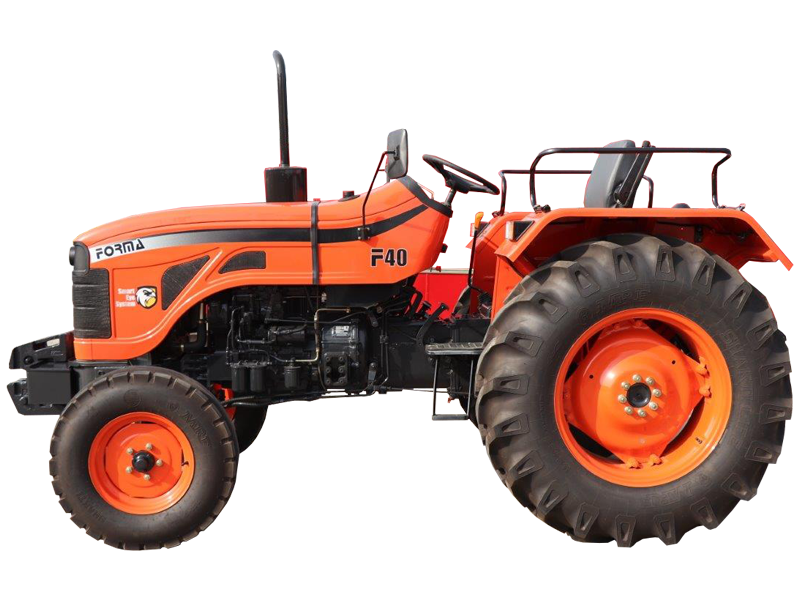

Model : F40
| MODEL | F40 |
| Operator Station | Non-cab |
| Traction | 2WD/MFWD |
| ENGINE | |
| Model | A40 |
| Тype | TREM IIIA, Water Cooled, 4 Stroke, Naturally Aspirated, Direct Injection, Diesel Engine |
| Displacement (cc) | 2858 |
| Engine HP* | 40 |
| Fuel System | Inline Fuel Injection Pump |
| Fuel Capacity (1) | 55 |
| Alternator (Amp) | 42 |
| TRANSMISSION | |
| Standard | 8+2 |
| Differential Lock | Available in 2WD as Optional |
| MFD Engagement | Mechanical Engagement |
| 3-POINT HITCH FEATURES | |
| 3-Point Hitch Category | Cat II/I |
| Draft Sensing or Lift Control | Top link sensing |
| 3-POINT HITCH LIFT Capacity | |
| Standard Lift Capacity at ballend | 1200 |
| AXLES | |
| Front | 2WD or MFWD with Limited Slip |
| PTO | |
| PTO Speed | 540 RPM |
| HYDRAULICS | |
| System Type | Open Center |
| Number of Rear Remotes | 2 |
| Hydraulic Pump Flow (Ipm) | 34 |
| DIMENSIONS & WEIGHTS | |
| Wheelbase (2WD) | 1960 |
| Overll Length | 3600 |
| Overall Height (2WD) | 2300 |
| Tractor Weight without Ballast (2WD) | 1930 |
| BALLAST | |
| Front Weights (Optional) | 22 kg x 4 Qty. |
| TIRES | |
| Front (2WD) | 6.00-16 |
| Rear (2WD) | 13.6×28 |
| Front (MFWD) | 8.00-18 |
| Rear (MFWD) | 13.6×28 |
