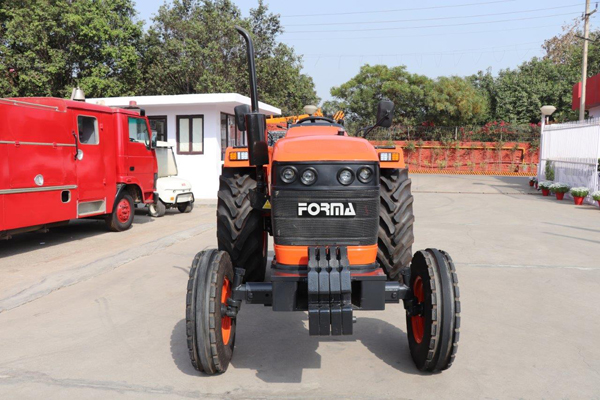

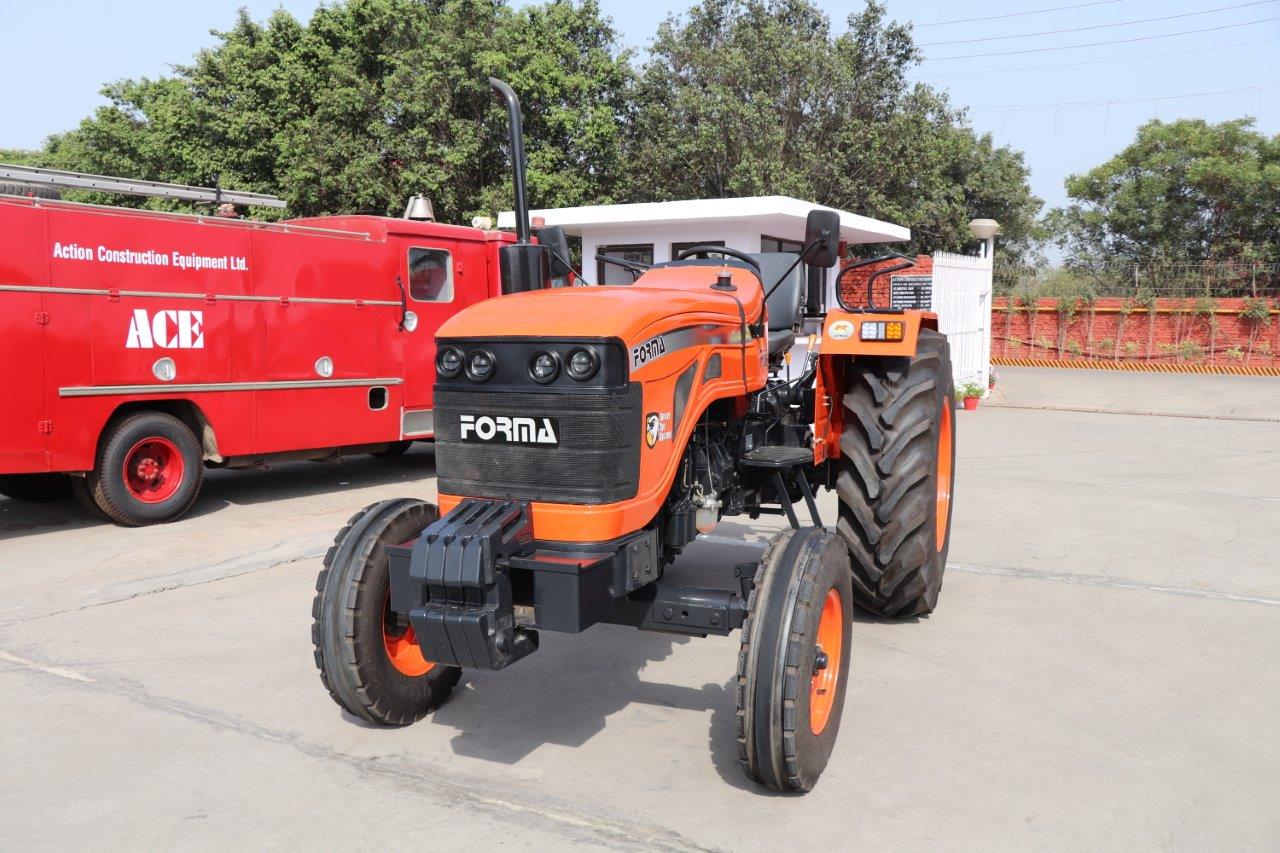

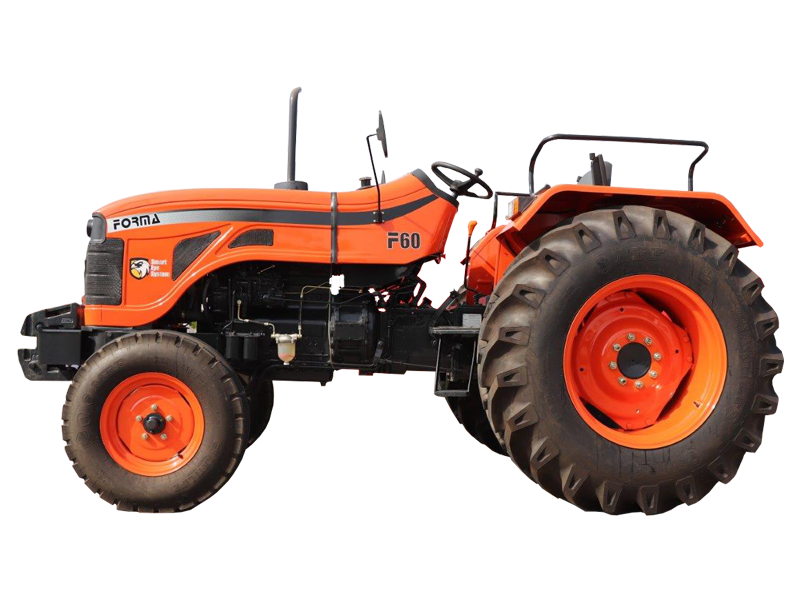

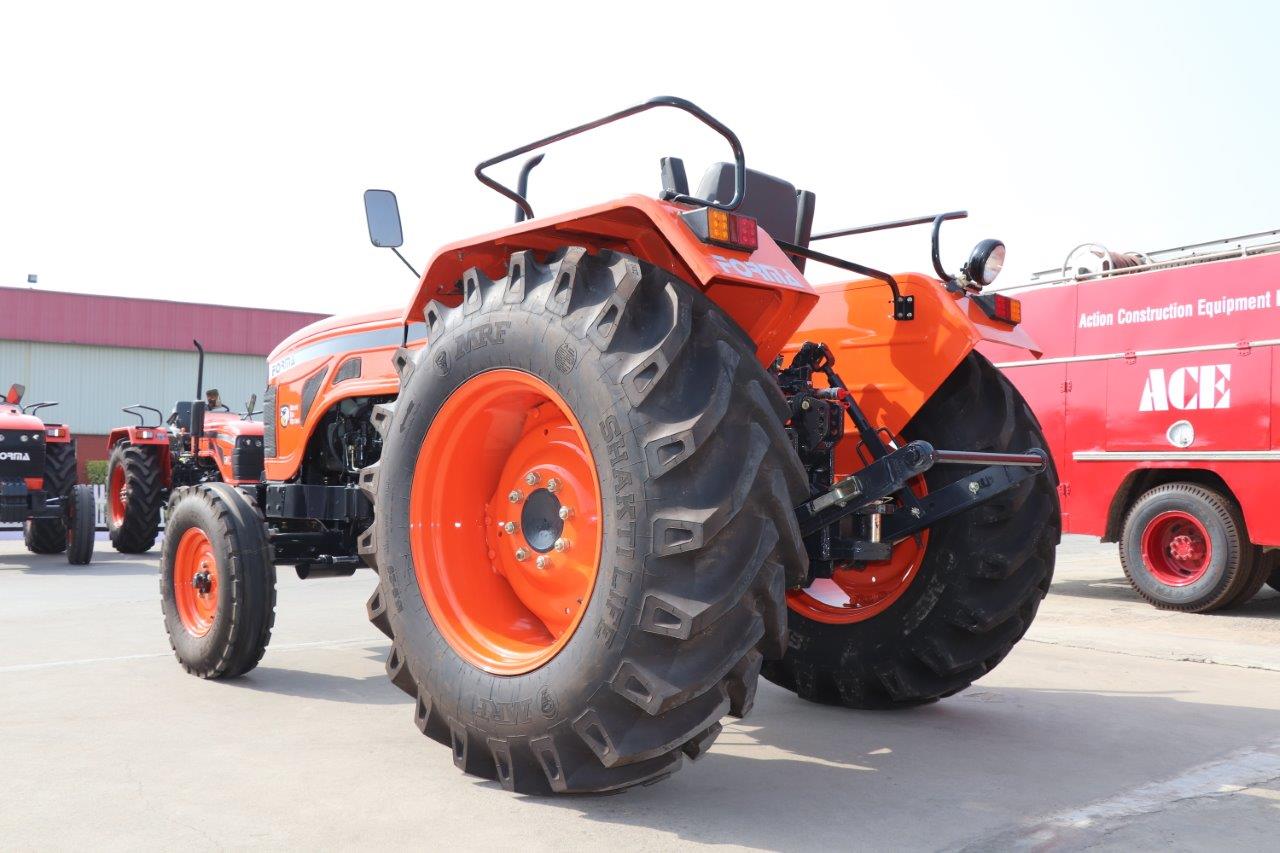

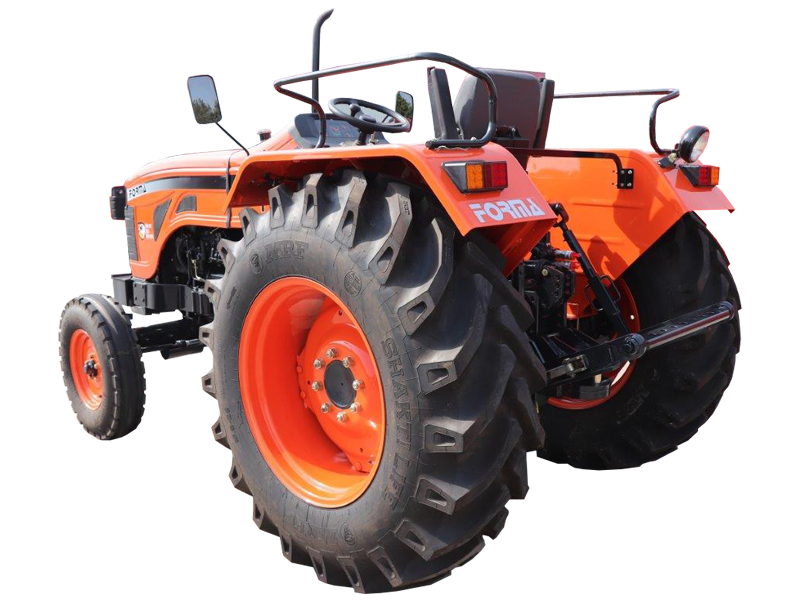

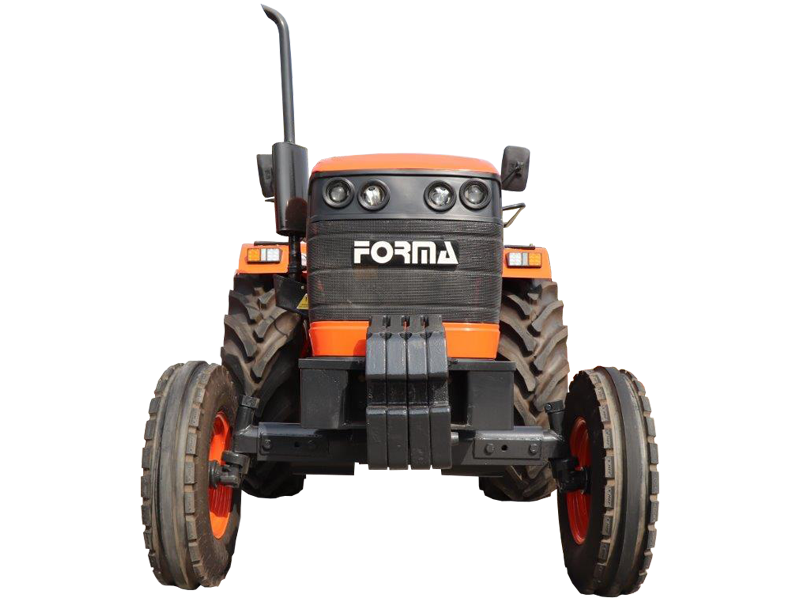

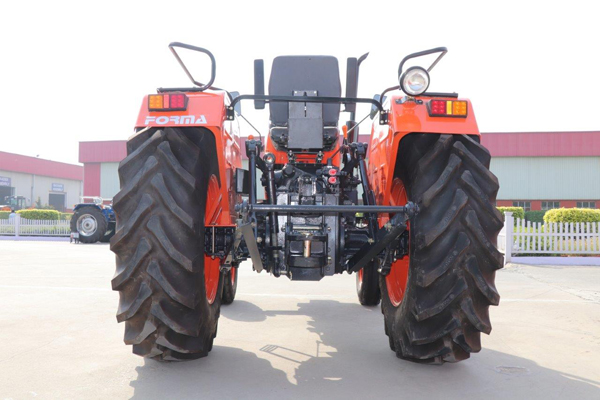

Model : F60
| MODEL | F60 |
| Operator Station | Non-cab |
| Traction | 2WD/MFWD |
| ENGINE | |
| Model | F60 |
| Тype | TREM IIIA, Water Cooled, 4 Stroke, Naturally Aspirated, DI, Diesel Engine |
| Displacement (cc) | 4088 |
| Engine HP* | 61.2 |
| Fuel System | Inline Fuel Injection Pump |
| Fuel Capacity (1) | 65 |
| Alternator (Amp) | 42 |
| TRANSMISSION | |
| Standard | 8+2 / 12+12 |
| Differential Lock | Available |
| MFWD Engagement | Mechanical Engagement |
| 3-POINT HITCH FEATURES | |
| 3-Point Hitch Category | Cat II/I |
| Draft Sensing or Lift Control | Top link sensing |
| 3-POINT HITCH LIFT Capacity | |
| Standard Lift Capacity at ballend | 2200 / 2200 kg |
| AXLES | |
| Front | 2WD/MFWD |
| PTO | |
| PTO Speed | 540, 540E |
| HYDRAULICS | |
| System Type | Open Center |
| Number of Rear Remotes | 4 |
| Hydraulic Pump Flow (Ipm) | 49.5 |
| DIMENSIONS & WEIGHTS | |
| Wheelbase (4WD) | 2200 / 2235 |
| Overll Length | 3845 / 3990 |
| Overall Height (4WD) with ROPS | 2500 / 2600 |
| Tractor Weight without Ballast (4WD) | 2515 / 2785 |
| BALLAST | |
| Front Weights (Optional) | 22 kg x 4 Qty. |
| TIRES | |
| Front (2WD) | 7.50-16 |
| Rear (2WD) | 16.9×28 |
| Front (MFWD) | 9.5-24 |
| Rear (MFWD) | 16.9×28 |
