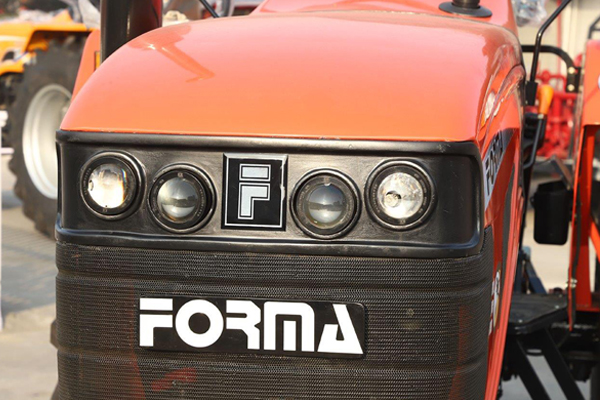

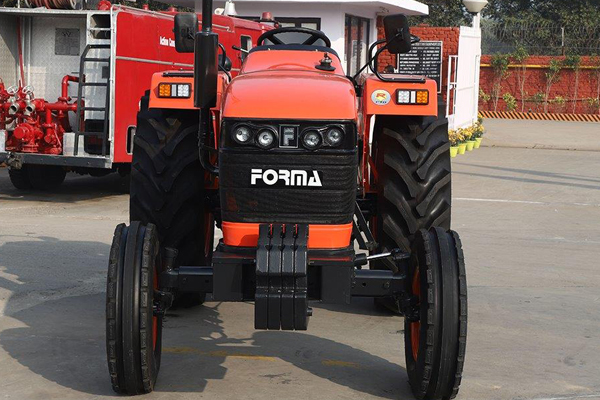

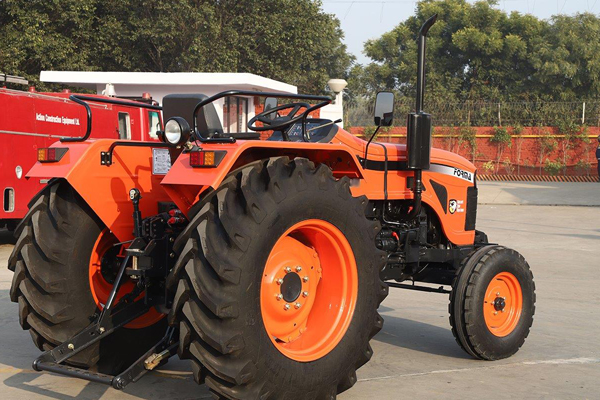

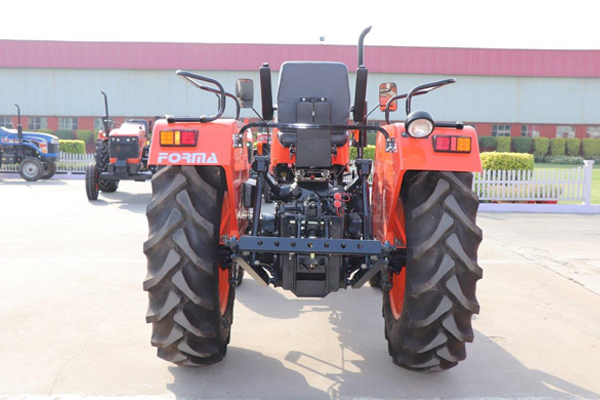

Tractor
Model: F90
Forma F90 – Powerful transport tractor, which can lighten every burden of life! The 50 hp range F90 offers optimum performance and unmatched utility at the best price, making it suitable for commercial and trolley applications in sand quarries, water tankers, construction material transportation, infrastructure, and construction works, applications make the best tractor.
Engine Power
50 HP
Lift Capacity
1800 kg
Cylinder
3
GearBox
8 FWD, 2 REV.
Drive
2WD/4WD
Model : F90
| MODEL | F90 |
| Operator Station | Non-cab |
| Traction | 2WD/MFWD |
| ENGINE | |
| Model | A90 TC |
| Тype | TREM, Water Cooled, 4 Stroke, Turbocharged with intercooler, DI, Diesel Engine |
| Displacement (cc) | 4088 |
| Engine HP* | 89.8 |
| Fuel System | Inline Fuel Injection Pump |
| Fuel Capacity (1) | 65 |
| Alternator (Amp) | 42 |
| TRANSMISSION | |
| Standard | 12+12 |
| Differential Lock | Available |
| MFD Engagement | Mechanical Engagement |
| 3-POINT HITCH FEATURES | |
| 3-Point Hitch Category | Cat II/I |
| Draft Sensing or Lift Control | Top link sensing |
| 3-POINT HITCH LIFT Capacity | |
| Standard Lift Capacity at ballend | 2500 kg |
| AXLES | |
| Front | MFWD |
| PTO | |
| PTO Speed | 540 540E |
| HYDRAULICS | |
| System Type | Open Center |
| Number of Rear Remotes | 4 |
| Hydraulic Pump Flow (Ipm) | 49.5 |
| DIMENSIONS & WEIGHTS | |
| Wheelbase (2WD) | 2265 |
| Overll Length | 4020 |
| Overall Height (2WD) | 2670 |
| Tractor Weight without Ballast (2WD) | 2976 |
| BALLAST | |
| Front Weights (Optional) | 22 kg x 4 Qty. |
| TIRES | |
| Front (2WD) | – |
| Rear (2WD) | – |
| Front (MFWD) | 12.4×24 |
| Rear (MFWD) | 18.4×30 |
