Rebuilding The World

F45

Tractor

Model: F45

Forma F45 – Powerful transport tractor, which can lighten every burden of life! The 50 hp range F45 offers optimum performance and unmatched utility at the best price, making it suitable for commercial and trolley applications in sand quarries, water tankers, construction material transportation, infrastructure, and construction works, applications make the best tractor.

Download Brochure Download Brochure
Engine Power

50 HP

Lift Capacity

1800 kg

Cylinder

3

GearBox

8 FWD, 2 REV.

Drive

2WD/4WD

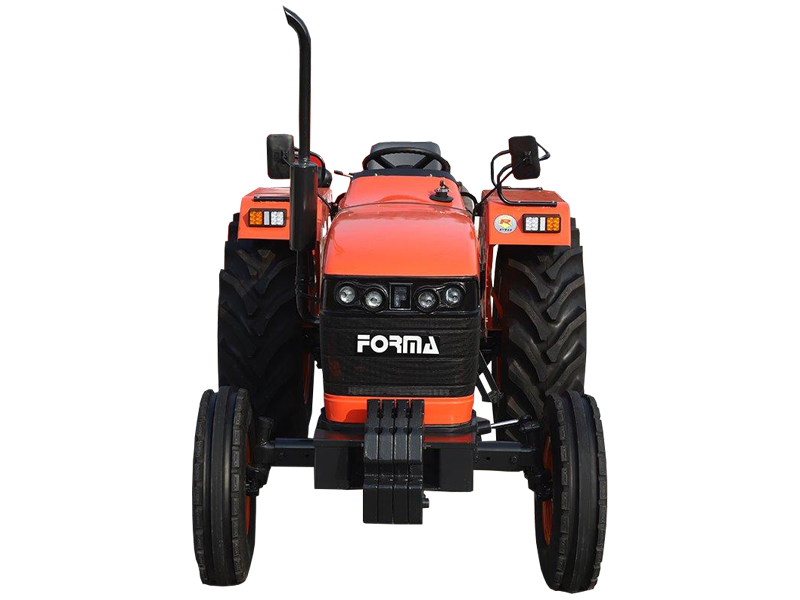

f45-1

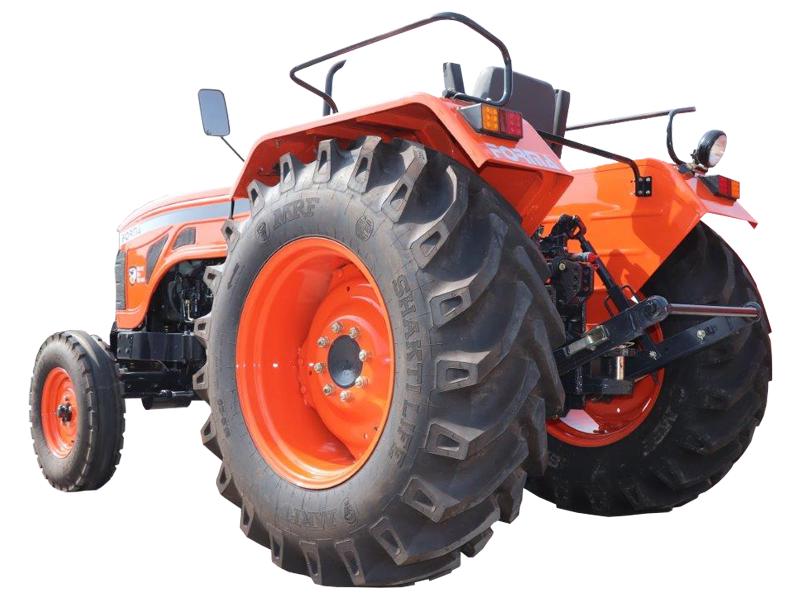

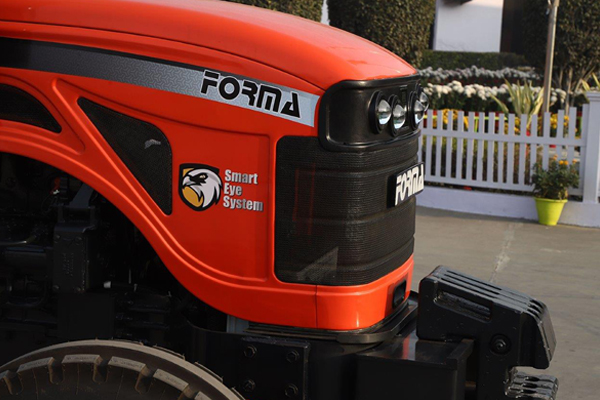

f45-2

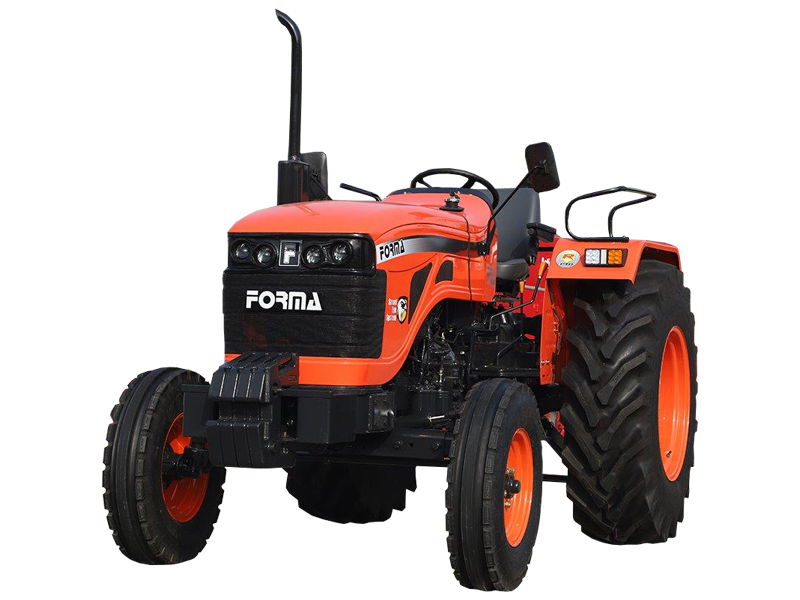

f45

Model : F45

MODELF45
Operator StationNon-cab
Traction2WD/MFWD



ENGINE
ModelA45
ТypeTREM IIIA, Water Cooled, 4 Stroke, Naturally Aspirated, Direct Injection, Diesel Engine
Displacement (cc)2858
Engine HP*45
Fuel SystemInline Fuel Injection Pump
Fuel Capacity (1)55
Alternator (Amp)42
TRANSMISSION
Standard8+2
Differential LockAvailable in 2WD as Optional
MFD EngagementMechanical Engagement
3-POINT HITCH FEATURES
3-Point Hitch CategoryCat II/I
Draft Sensing or Lift ControlTop link sensing
3-POINT HITCH LIFT Capacity
Standard Lift Capacity at ballend1600
AXLES
Front2WD or MFWD with Limited Slip
TIRES
Front (2WD)7.50-16
Rear (2WD)16.9×28
Front (MFWD)9.5-24
Rear (MFWD)16.9×28
PTO
PTO Speed540 RPM
HYDRAULICS
System TypeOpen Center
Number of Rear Remotes2
Hydraulic Pump Flow (Ipm)38
DIMENSIONS & WEIGHTS
Wheelbase (2WD)1960
Overll Length3660
Overall Height (2WD)2300
Tractor Weight without Ballast (2WD)1950
BALLAST
Front Weights (Optional)22 kg x 4 Qty.
TIRES
Front (2WD)6.00-16
Rear (2WD)14.9×28
Front (MFWD)8.00-18
Rear (MFWD)13.6×28
